Spin Coating Systems

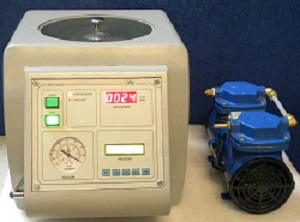

• Compact Table Top Model
• Digital speed indication (LCD display)RPM
• Available in range of 200 – 12000
• Custom designed brushless DC servo motor with closed loop digital speed control
• 0-999 sec. Continuously adjustable timer

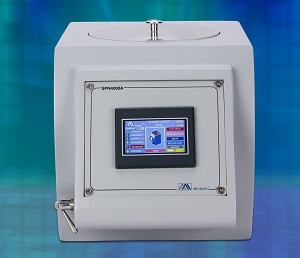

Series 4000A

• HMI Based Multistep Recipe Control
• Real time Graphical Display
• Available in range of 200 – 12000 RPM with ±1 RPM Accuracy
• Calibration facility
• Quick start mode
• All Safety Interlocks

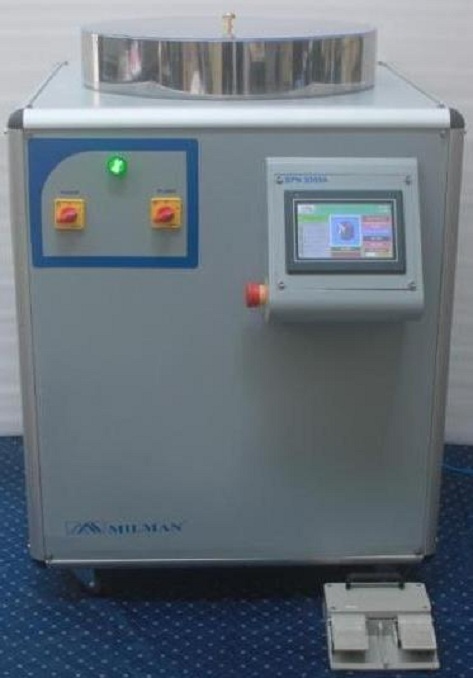

• Handles Large Area Substrates up to 300 mm x 300 mm
• Available in range of 200 – 1200 RPM
• Unique MILMAN design integrated drive mechanism with dynamically balanced motor and chuck assembly to give wobble free spin rotation
• High performance brushless PMDC servomotor with continuous solid state digital speed controller
• User friendly HMI based software for process recipe programming with acceleration and deceleration contro
• Real time display of speed vs time
• A wide range of interlocks and accessories like vacuum interlock, zero speed switch, foot switch operation etc.
